e-Sil 100 Series

Conductive Carbon/Silicone Rubber

 Download as PDF
e-Sil 100 is a silicone rubber filled with a special conductive carbon. Excellent electrical properties with superior strength and physical properties are achieved by special selection of elastomer type and fine tuning of carbon type and concentration. These properties are maintained over an extremely wide temperature range.

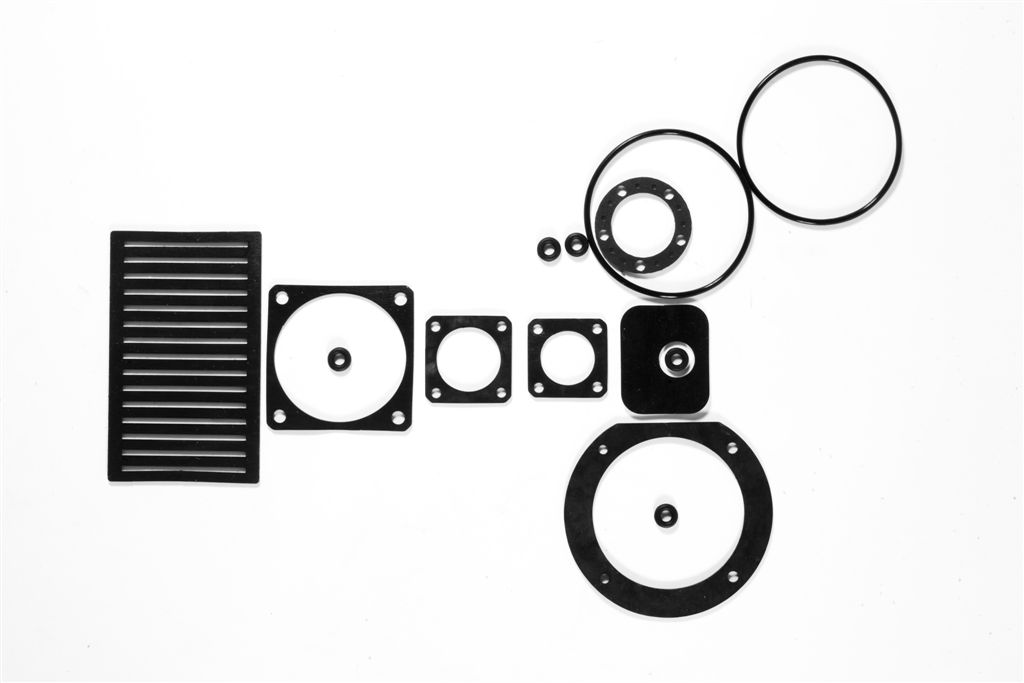

Ideal for static discharge and corona applications.  e-sil100.jpg
Excellent voltage handling capability for grounding and lower current densities.
Effective over a wide range of temperature.
Superior tensile strength comparing to competing materials.
Excellent compression set to maintain sealing force over very long period of time.
Chemical resistance for process cleaning agents.
Available in sheets in every thickness and custom die-cut parts.
Available also in custom molded parts to any shape.


Physical Properties e-Sil 150 e-sil 160 e-sil 170 Test Method
Elastomer binder silicone silicone silicone
Filler type Cond. Carbon Cond. Carbon Cond. Carbon Cond.
Color Black Black Black
Operational Temperature, °C (-60) to (+180) (-60) to (+180) (-60) to (+180)
Hardness, Shore A 50 ± 5 60 ± 5 70 ± 5 ASTM D-2240
Tensile Strength, psi (Mpa) 840(5.8) 850(5.9) 820(5.7) ASTM D-412
Elongation, % 300 250 140 ASTM D-412
Tear Strength, die C, lb/in (kN/m) 55(9.7) 55(9.7) 56(9.9) ASTM D-624
Volume Change in Water 24hr@25°C +0.2% +0.2% +0.2% ASTM D-471
Specific Gravity, gr/cm3 1.11 1.13 1.17 ASTM D-792
Compression Set, 22hr @ 177°C 35% 38% 28% ASTM D-395
Volume Resistivity, Ω-cm 5.2 2.8 2.8 Mil-DTL-83528


NOTICE: The information contained herein is true to the best of our knowledge. However, since varied condition of potential use are beyond our control, users should make their own tests and evaluation to determine the suitability of our products in any specific situation and use. These products are sold without warranty, either expressed or implied, of fitness for a particular purpose or otherwise, except to the extent otherwise stated on Alvas quotation, order confirmation or invoice. We disclaim any liability incurred in connection with the use of information contained herein, or otherwise. All risks of such are assumed by the user.
